Model GBB2000 based on the engine BAUDOUIN 16M33G2000/5 provides prime power 1830 kVA and standby power 2000 kVA — stable power supply in any operating conditions.
| Parameter | Value |
|---|---|
| Generator Model | GBB2000 |
| Engine Brand | Baudouin |
| Engine Model | 16M33G2000/5 |
| Alternator | M2100 |
| Prime Power kVA | 1830 kVA |
| Prime Power kW | 1464 kW |
| Standby Power kVA | 2000 kVA |
| Standby Power kW | 1600 kW |
| Parameter | Value |
|---|---|
| Weight | 12145 kg |
| Height | 2700 mm |
| Weight | 2430 mm |
| Length | 6500 mm |
| Fuel Tank | 3000 liters |
| Parameter | Value |
|---|---|
| Weight | 12145 kg |
| Height | 2700 mm |
| Width | 2430 mm |
| Length | 6500 mm |
| Fuel Tank | 3000 liters |
| Parameter | Value |
|---|---|
| Engine Brand | Baudouin |
| Engine Model | 16M33G2000/5 |
| Maximum Engine Power (Standby) | 1600 kW |
| Maximum Engine Power (Prime) | 1464 kW |
| Engine Volume | 52.3 liters |
| Engine RPM | 1500 rpm |
| Cylinders and Firing Order | 16 |
| Bore x Stroke | 150x185 |
| Governor Type | Elektronik |
| Oil Volume | 171 liters |
| Coolant Capacity | 270 liters |
| Fuel Capacity | 3000 liters |
| Fuel Consumption 100% | 194.7 l/hours |
| Parameter | Value |
|---|---|
| Standby Power | 2035 kVa |
| Prime Power | 1900 kVa |
| Voltage | 230 |
| Voltage Tolerance | ±0.5% |
| Frequency | 50 Hz |
| Insulation | IP23/H |
| Alternator Capacity | 96.5 % |
The diesel generator GBB2000 is equipped with an BAUDOUIN engine model 16M33G2000/5 and is designed to provide reliable power supply to facilities in both prime and standby power modes. The unit delivers prime (PRP) power of 1830 kVA / 1464 kW, making it an optimal choice for long-term continuous operation under load.
In standby mode (ESP), the generator GBB2000 provides 2000 kVA / 1600 kW, ensuring uninterrupted operation of critical equipment during sudden outages of the external power grid. This power reserve makes it possible to use the unit at manufacturing facilities, shopping complexes, and administrative buildings.

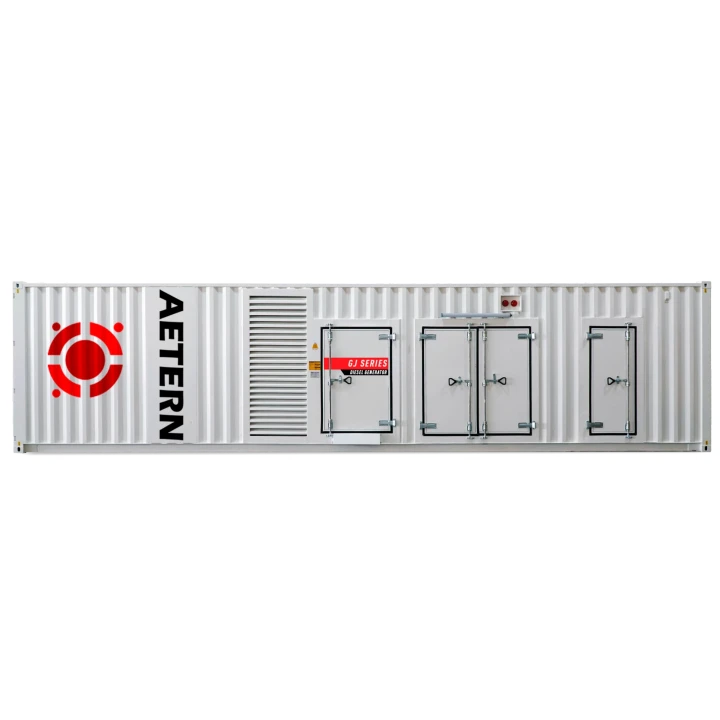

Thanks to its protective soundproof enclosure, the GBB2000 generator set can be installed in open areas without the need for additional shelters. The enclosure reliably protects the internal components from weather influences and significantly reduces acoustic discomfort for personnel and the surrounding environment.
The GBB2000 generator is based on a 16-cylinder BAUDOUIN 16M33G2000/5 engine, ensuring stable operation under prolonged loads. The power unit is designed for operation across a wide range of conditions — from moderate to hot climates.
The 16M33G2000/5 engine manufactured by BAUDOUIN is distinguished by high fuel efficiency and an extended interval between scheduled maintenance services, which reduces the total operating costs throughout the entire service life of the GBB2000 generator set.
The combination of the 16 power unit BAUDOUIN 16M33G2000/5 with output ratings of 1830 kVA (PRP) and 2000 kVA (ESP) makes the generator GBB2000 a balanced solution for applications requiring high reliability and minimal downtime.
